HamSphere Starter Guide
Tip: Consider printing this guide for quick reference.
READ THIS FIRST: What to do when you hear only noise
HamSphere simulates how real HF radio signals travel. A band can be quiet now and come alive later.
Who you can hear depends on the band, the time of day, and solar conditions.
Hearing only static on a frequency is normal.
To find your first contact, click Cluster/Log. In the DX Cluster, look for a recent spot (a report of a station someone heard).
Tune to its frequency and listen. If you hear someone calling CQ, wait for them to finish and reply with your callsign.
If all you hear is static, try a recent spot on another band.
DX Cluster |
HamSphere Activity
How to work HF on HamSphere
Get help from other operators. Join the
HamSphere 40 Meter Help Group on Facebook, where over 1,000 members can help with your questions. On HamSphere, you can call the group any time on
2 metres (145.500 MHz). Group members are often listening there.
If you run into technical problems, you can always contact
HamSphere Support.

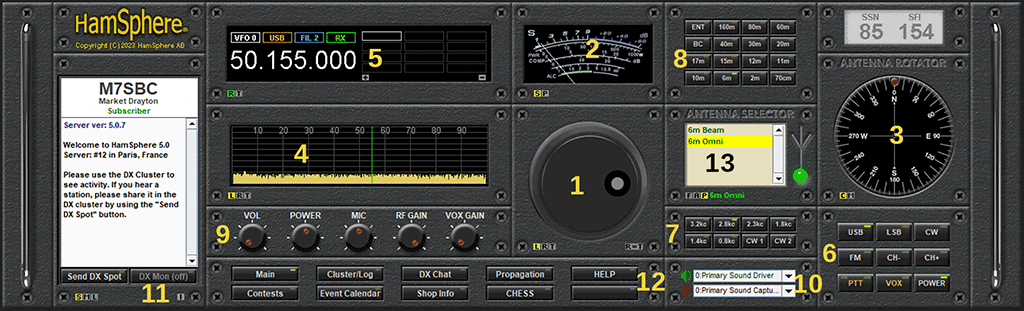

1. VFO (Variable Frequency Oscillator):
Engage with the VFO dial to move across the band. Utilize the L = lock function to synchronize the TX and RX frequencies. The R = RX frequency and T = TX frequency buttons offer individual frequency adjustments. For split operations, take note of the yellow R=T indicator; clicking it will synchronize TX and RX frequencies.
- VFO Dial: Rotate this to tune up and down the band.
- L (Lock): Locks both TX (Transmit) and RX (Receive) frequencies to move together.
- R (RX frequency): When activated, you can change the receive frequency using the VFO.
- T (TX frequency): Allows you to change the transmit frequency with VFO.
- R=T Indicator: Turns yellow when working in split mode. Clicking on it resets to the same TX and RX frequency.
2. Signal, Power & ALC Meter:
The S highlighted in yellow provides a visual on received signals. Adjust your mic volume to correctly set your ALC level when transmitting. When the P is highlighted in yellow, it showcases your transmission power during PTT activation.
- Virtual Transceiver Display: Visualizes the transceiver's current state, including frequency, modulation, and other settings.
- Drag and Drop: The drag and drop feature allows you to adjust settings with ease.
3. The Antenna Rotator:
Engaging with this plugin is intuitive. The distinctive red dot transitions to green when a rotatable Antenna, like the 6-meter beam, is in use. Adjust the azimuth accordingly. The display options, C and M, provide control over the great circle map's presentation on the rotator.
- Green Dot: Indicates a rotatable antenna. Click it to adjust the azimuth degree heading.
- C Indicator: When highlighted in yellow, it means no great circle map is displayed.
- M Indicator: When highlighted in yellow, it displays the great circle map.
4. Band Scope:
The Band Scope plugin visualizes signals on your current band. When the L is highlighted in yellow, it permits frequency adjustments via left-clicks across the center. The R and T buttons, highlighted in their respective colors, enable distinct adjustments for receive and transmit frequencies. A deeper exploration of split mode functions will be provided in a subsequent guide.
- Main Display: This plug-in displays received and transmitted signals for the band you are currently on.
- L (Left-click): Highlighted in yellow, lets you left-click anywhere across the band scope's center to change both transmit and receive frequencies.
- R (Receive Frequency): Highlighted in green allows changing of the receive frequency.
- T (Transmit Frequency): Highlighted in red lets you adjust the transmit frequency. Useful when working in split mode.
5. LCD Display:
The LCD indicates the current frequency for any chosen band. It features 12 storage boxes on its right side for user-defined frequencies. Utilize the small + at the bottom to save a frequency, or the - at the bottom right to remove one. The color-coded R and T provide clarity on receive and transmit frequencies, especially vital for split mode operations.
- Frequency Indicator: Displays the current frequency of any band.
- Storage Boxes: 12 small boxes on the right side of the LCD for storing frequencies.
- Save Frequency: Click the small + at the LCD's bottom.
- Remove Frequency: Press the - at the bottom right corner.
6. Button Panel:
The Button Panel is equipped with illumination features; green for the USB button on bands 6-30m and for the LSB button on bands 40-160m. The CW button, when activated, reduces power. There are additional utilities such as frequency stepping, a Voice Operated Switch (VOX), and Push To Talk (PTT) functions. The POWER button conveniently transitions you back to the HamSphere 5.0 startup screen.
- USB and LSB Indicators: For bands 6-30m, the USB button illuminates green. For bands 40-160m, the LSB button turns green.
- CW Button: Reduces power when pressed and lights up green.
- Other Features: Frequency stepping with CH- and CH+, VOX, PTT functionalities, and the POWER button.
7. Filter Panel:
The Filter Panel enhances signal reception and audio clarity. Filters are defined by width numbers, where, for instance, 3.2kc is broader than 1.8kc. Narrow filters can be particularly useful in scenarios with weaker signals or potential band interferences.
- Filter Enhancement: Enhances the received signal/audio quality. Width numbers denote the filter's coverage.
8. Band Selector:
Use the Band Selector to easily pick your desired band. Once you've made your choice, the corresponding band button will light up in green, confirming your selection.
- Band Selection: Pick the desired band. The chosen band button illuminates green.
9. Volume Panel:
The Volume Panel offers you precise control over your audio settings. With the VOL feature, you can adjust your listening volume. The POWER feature lets you set your transmission strength. It's essential to set your MIC properly to ensure clear communication; always aim to be in the green "ALC" zone on the S-Meter for the best results. You also have the RF Gain, which is vital for reception quality, and the VOX settings that allow you to configure voice-triggered operations.
- VOL Control: Adjusts your volume.
- POWER Control: Adjusts your transmit power. White dashes indicate specific power levels.
- MIC Control: Modifies the microphone's level. Best used to keep the S-Meter needle within the green "ALC" area.
- RF Gain: Manages pre-amplification in your receiver.
- VOX Settings: VOX Gain/VOX Delay control manages the VOX settings.
10. Audio Control Selector:
Use the Audio Control Selector to set up HamSphere according to your audio preferences. Both the Speaker and Mic Icons have dropdown menus, allowing you to choose your audio output and input devices, ensuring you get the best sound experience based on your equipment.
- Speaker Icon: Choose the audio output device for HamSphere 5.
- Mic Icon: Select the audio input device. Dropdown menu allows changes.
11. DX Monitor:
Curious about your connection? Just click the small 'I' at the bottom right of the plugin to see server and latency details. Activate the DX Mon button, which will turn green, to get insights on signal reception across bands 10-160m for any antenna. If the text size isn't quite right for you, adjust it using the S, M, and L buttons on the Monitor plugin.
- Server Info: Clicking the small I in the plugin's bottom right corner reveals server and Latency details.
- DX Mon Button: Turns green when activated. Shows which DX Monitors receive your signal when PTT is pressed.
- Text Size: The S, M, and L buttons adjust the text size on the Monitor plugin.
12. 10-Button Plugin:
With this versatile plugin, you can do more with ease. When you select the main button, it lights up in green, showing the rig in the primary view right in front of you. Want to access your logbook? Just press the cluster/logbook button, and it's right there.
- Main Button: Shows the rig in the main view when selected. It lights up green.
- Cluster/Logbook Button: Opens your logbook when pressed.
13. Antenna Selector:
With the Antenna Selector, you have an array of antenna choices at your fingertips. At the bottom of the selector, color-coded boxes give you a quick overview of the antennas available, the ones you've purchased, and the one you're currently using. This plugin is mainly for the 6M and HF bands. When you've loaded an antenna, you'll see the light on the plugin turn green, letting you know it's active.
- Antenna Selection: Pick from various antennas. Available antennas are displayed in three colored boxes at the bottom.
- F List: Lists antennas purchased for your current frequency.
- A List: Provides a filtered list of antennas tuned for your current frequency.
- P Display: Shows the currently used antenna on the bottom line. The plugin light remains green when an antenna is loaded.
